Backgrounds

The bgcolor() function is used to change the background color of the script. When the script runs in overlay = true mode, it colors the chart’s background.

The function’s signature is as follows:

bgcolor(color, offset) → void

Arguments

color (series color): Defines the color of the filled background. This can be a constant like 'red' or '#ff001a', or a complex expression such as 'close >= open ? color.green : color.red'. This is a required argument.
offset (series int): Determines the number of bars to shift the color series to the left or right. The default value is 0.

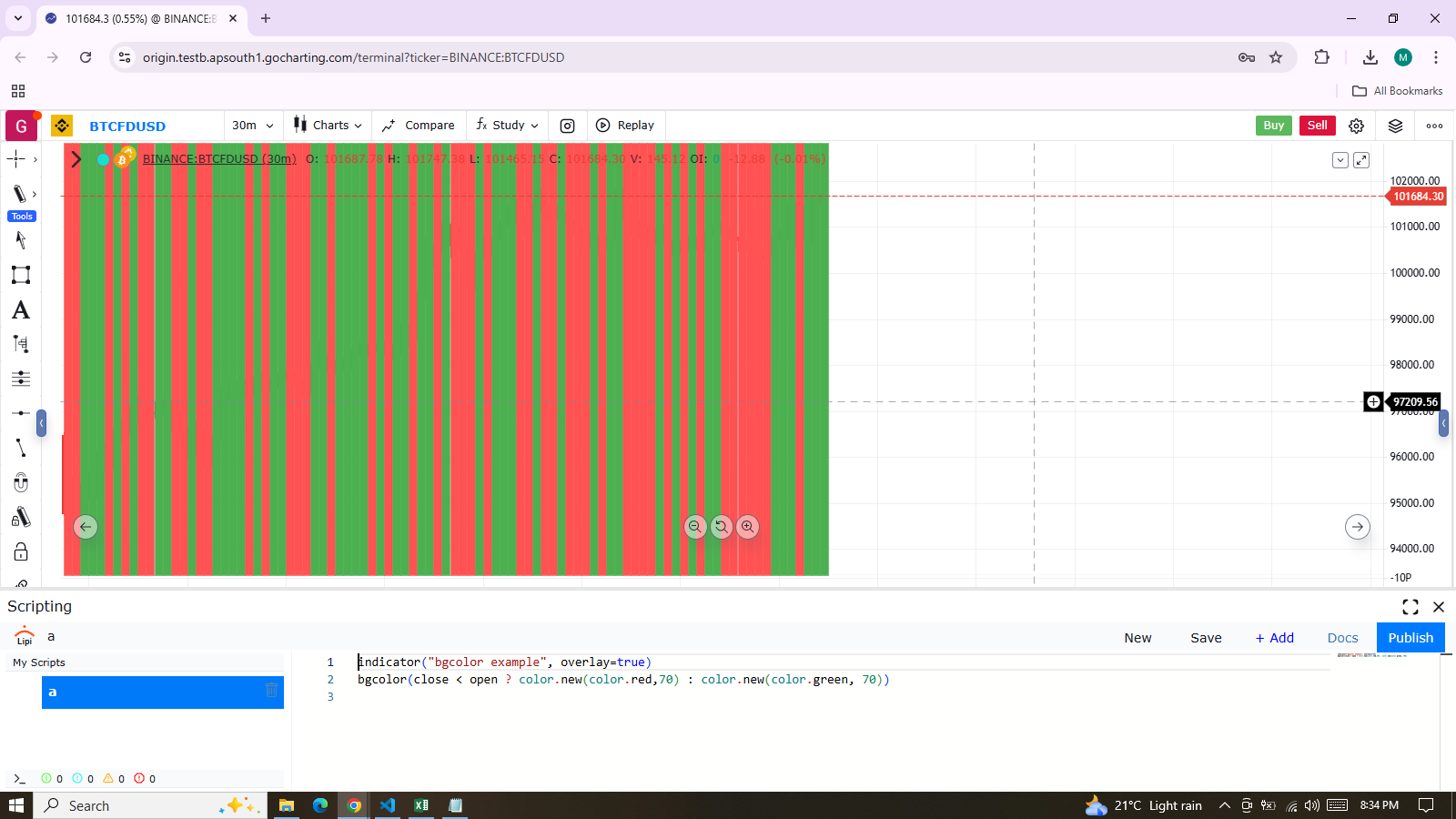

Example:

indicator("bgcolor example", overlay=true)
bgcolor(close < open ? color.new(color.red,70) : color.new(color.green, 70))

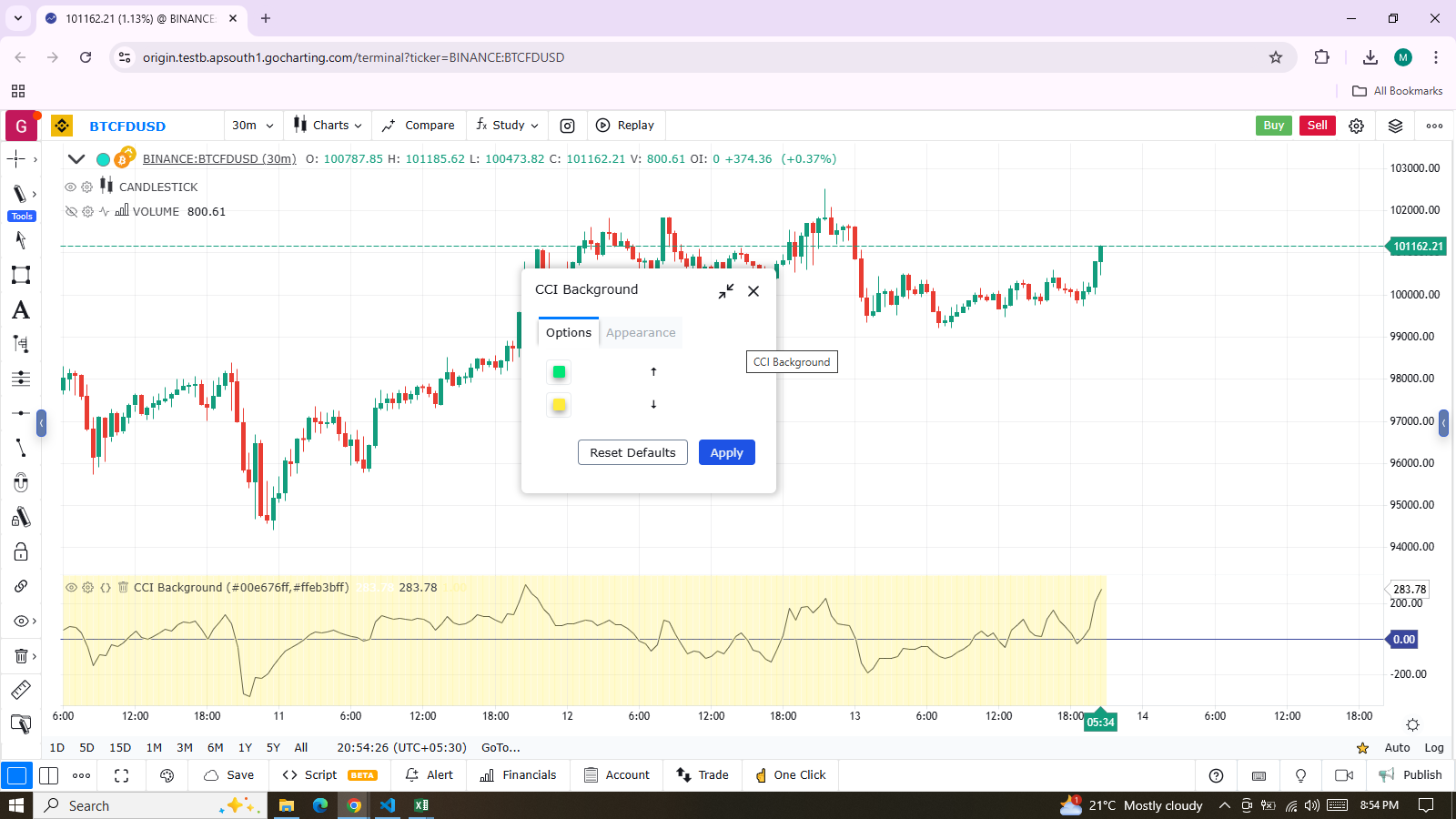

In our next example, we generate a gradient for the background of a CCI line:

indicator("CCI Background")

bullColor = input.color(color.lime, "🠅", inline = "1")
bearColor = input.color(color.yellow, "🠇", inline = "1")

// Calculate CCI.
myCCI = talib.cci(hlc3, 20)
// Get relative position of CCI in last 100 bars, on a 0-100% scale.
myCCIPosition = talib.percentrank(myCCI, 100)
// Generate a bull gradient when position is 50-100%, bear gradient when position is 0-50%.
backgroundColor = myCCIPosition >= 50 ?color.new(bullColor, 0.25):color.new(bearColor, 0.25)

// Wider white line background.
plot(myCCI, "CCI", color.white, 3)
// Think black line.
plot(myCCI, "CCI", color.black, 1)
// Zero level.
hline(0)
// Gradient background.
bgcolor(backgroundColor)
