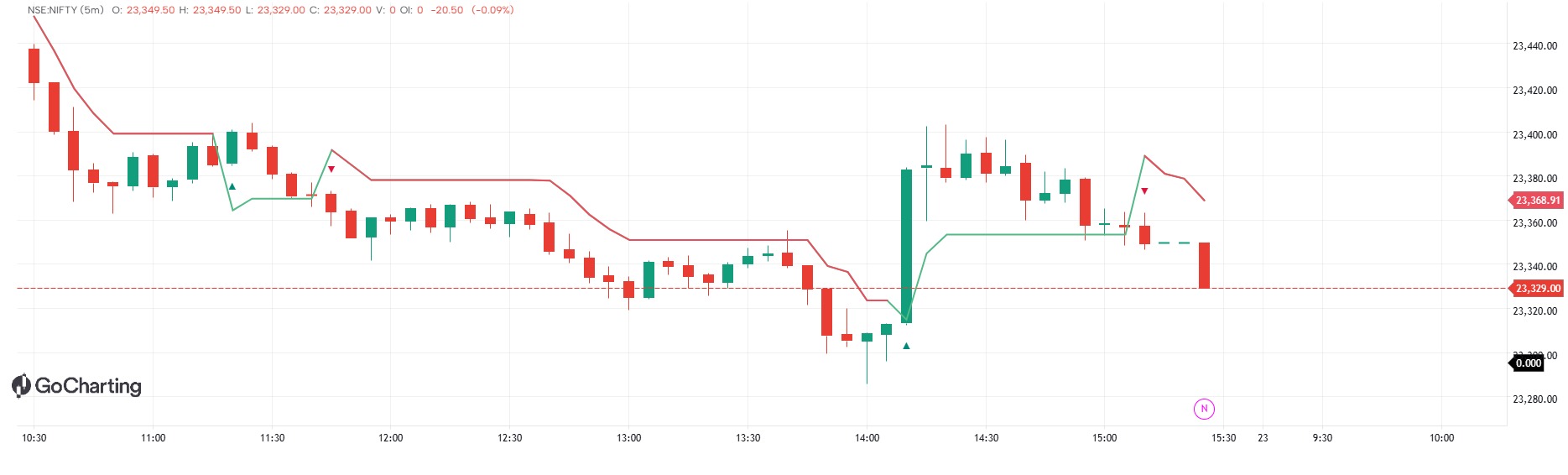

Liquidity Indicator

//@version=5
indicator("Liquidity Indicator Pro", shorttitle="LIQ Pro", overlay=true, max_boxes_count=500,
max_lines_count=500, max_labels_count=500)
//
======================================================================
======
// LIQUIDITY INDICATOR PRO (v2 - decluttered)
// Only shows the strongest, most recent unswept liquidity zones instead of
// drawing a zone at every minor swing point. Equal highs/lows within
// tolerance are merged into ONE pool instead of stacking duplicate zones.
//
======================================================================
======
// ============================== INPUTS ==============================
grpSwing = "Swing Structure"
swingLen = input.int(10, "Swing Length", minval=1, group=grpSwing,
tooltip="Higher = fewer, stronger pivots (less noise). Lower = more, weaker pivots (more
clutter).")
grpLiq = "Liquidity"
showSweeps = input.bool(true, "Show Sweeps", group=grpLiq)
showStrong = input.bool(true, "Show Strong Levels", group=grpLiq)
showZones = input.bool(true, "Show Liquidity Zones", group=grpLiq)
maxZones = input.int(2, "Max Active Zones (per side)", minval=1, maxval=5,
group=grpLiq,
tooltip="Only the N most recent unswept zones per side stay on chart. Oldest is dropped
automatically.")
liqTolPct = input.float(0.08, "Equal High/Low Merge Tolerance %", minval=0.0, step=0.01,
group=grpLiq,
tooltip="New pivots within this %% of an existing zone merge into it instead of drawing a
duplicate.")
grpStruct = "Structure (BOS / CHOCH)"
showStructure = input.bool(true, "Show BOS/CHOCH", group=grpStruct)
grpFVG = "Fair Value Gap"
showFVG = input.bool(true, "Show FVG", group=grpFVG)
fvgLookback = input.int(50, "FVG Box Length (bars)", minval=5, group=grpFVG)
minFVGSizePct = input.float(0.10, "Min FVG Size %", minval=0.0, step=0.01,
group=grpFVG)
mitigateFVG = input.bool(true, "Remove FVG When Filled", group=grpFVG)
grpCol = "Colors"
sellLiqColor = input.color(color.new(color.red, 85), "Sell-Side Liquidity Zone", group=grpCol)
buyLiqColor = input.color(color.new(color.green, 85), "Buy-Side Liquidity Zone",
group=grpCol)
bosColor = input.color(color.red, "BOS Color", group=grpCol)
chochColor = input.color(color.blue, "CHOCH Color", group=grpCol)
bullFvgColor = input.color(color.new(color.green, 80), "Bullish FVG", group=grpCol)
bearFvgColor = input.color(color.new(color.red, 80), "Bearish FVG", group=grpCol)
atrVal = ta.atr(14)
// ============================== ZONE STORAGE
==============================
// arrays hold the currently ACTIVE (unswept) zones only, oldest at index 0
var float[] sellLevels = array.new_float()
var int[] sellBars = array.new_int()
var box[] sellBoxes = array.new_box()
var float[] buyLevels = array.new_float()
var int[] buyBars = array.new_int()
var box[] buyBoxes = array.new_box()
var int trendDir = 0 // 1 = bullish structure, -1 = bearish structure
// ---- helper: find index of an existing level within tolerance, else -1 ----
findNear(arr, price, tolPct) =>
idx = -1
if array.size(arr) > 0
for i = 0 to array.size(arr) - 1
lvl = array.get(arr, i)
if math.abs(price - lvl) / lvl * 100 <= tolPct
idx := i
idx
else
idx
// ============================== SWING DETECTION
==============================
ph = ta.pivothigh(high, swingLen, swingLen)
pl = ta.pivotlow(low, swingLen, swingLen)
if not na(ph)
pivotBar = bar_index - swingLen
nearIdx = findNear(sellLevels, ph, liqTolPct)
if nearIdx >= 0
// equal-high pool: extend the existing zone instead of duplicating
bx = array.get(sellBoxes, nearIdx)
box.set_right(bx, bar_index)
else
if showZones
newBox = box.new(pivotBar, ph, bar_index, ph - atrVal * 0.05,
border_color=color.red, bgcolor=sellLiqColor, extend=extend.none)
label.new(pivotBar, ph, "SELL SIDE LIQUIDITY", style=label.style_label_down,
color=color.new(color.red, 100), textcolor=color.red, size=size.small)
array.push(sellBoxes, newBox)
array.push(sellLevels, ph)
array.push(sellBars, pivotBar)
// keep only the most recent maxZones -> drop the oldest
if array.size(sellLevels) > maxZones
oldBox = array.shift(sellBoxes)
if not na(oldBox)
box.delete(oldBox)
array.shift(sellLevels)
array.shift(sellBars)
if not na(pl)
pivotBar = bar_index - swingLen
nearIdx = findNear(buyLevels, pl, liqTolPct)
if nearIdx >= 0
bx = array.get(buyBoxes, nearIdx)
box.set_right(bx, bar_index)
else
if showZones
newBox = box.new(pivotBar, pl + atrVal * 0.05, bar_index, pl,
border_color=color.green, bgcolor=buyLiqColor, extend=extend.none)
label.new(pivotBar, pl, "BUY SIDE LIQUIDITY", style=label.style_label_up,
color=color.new(color.green, 100), textcolor=color.green, size=size.small)
array.push(buyBoxes, newBox)
array.push(buyLevels, pl)
array.push(buyBars, pivotBar)
if array.size(buyLevels) > maxZones
oldBox = array.shift(buyBoxes)
if not na(oldBox)
box.delete(oldBox)
array.shift(buyLevels)
array.shift(buyBars)
// extend all still-active zones to the current bar
if showZones
if array.size(sellBoxes) > 0
for i = 0 to array.size(sellBoxes) - 1
box.set_right(array.get(sellBoxes, i), bar_index)
if array.size(buyBoxes) > 0
for i = 0 to array.size(buyBoxes) - 1
box.set_right(array.get(buyBoxes, i), bar_index)
// ============================== SWEEP DETECTION
==============================
// check every active zone (not just the latest) each bar
if array.size(sellLevels) > 0
for i = array.size(sellLevels) - 1 to 0
lvl = array.get(sellLevels, i)
if high > lvl and close < lvl
if showSweeps
label.new(bar_index, high, "SWEEP", style=label.style_label_down,
color=color.new(color.black, 0), textcolor=color.white, size=size.small)
if showStrong
label.new(bar_index, lvl, "STRONG HIGH", style=label.style_label_left,
color=color.red, textcolor=color.white, size=size.small)
if showZones
bx = array.get(sellBoxes, i)
box.set_right(bx, bar_index)
box.set_bgcolor(bx, color.new(color.red, 70))
array.remove(sellLevels, i)
array.remove(sellBars, i)
array.remove(sellBoxes, i)
alert("Sell-side liquidity swept", alert.freq_once_per_bar_close)
if array.size(buyLevels) > 0
for i = array.size(buyLevels) - 1 to 0
lvl = array.get(buyLevels, i)
if low < lvl and close > lvl
if showSweeps
label.new(bar_index, low, "SWEEP", style=label.style_label_up,
color=color.new(color.black, 0), textcolor=color.white, size=size.small)
if showStrong
label.new(bar_index, lvl, "STRONG LOW", style=label.style_label_left,
color=color.green, textcolor=color.white, size=size.small)
if showZones
bx = array.get(buyBoxes, i)
box.set_right(bx, bar_index)
box.set_bgcolor(bx, color.new(color.green, 70))
array.remove(buyLevels, i)
array.remove(buyBars, i)
array.remove(buyBoxes, i)
alert("Buy-side liquidity swept", alert.freq_once_per_bar_close)
// ============================== BOS / CHOCH
==============================
// structure is judged against the most recent (last) active zone on each side
lastSellLvl = array.size(sellLevels) > 0 ? array.get(sellLevels, array.size(sellLevels) - 1) : na
lastSellBar = array.size(sellBars) > 0 ? array.get(sellBars, array.size(sellBars) - 1) : na
lastBuyLvl = array.size(buyLevels) > 0 ? array.get(buyLevels, array.size(buyLevels) - 1) :
na
lastBuyBar = array.size(buyBars) > 0 ? array.get(buyBars, array.size(buyBars) - 1) : na
if showStructure
if not na(lastSellLvl) and ta.crossover(close, lastSellLvl)
isChoch = trendDir == -1
line.new(lastSellBar, lastSellLvl, bar_index, lastSellLvl,
color=isChoch ? chochColor : bosColor, style=line.style_dashed)
label.new(int(math.round((lastSellBar + bar_index) / 2)), lastSellLvl, isChoch ?
"CHOCH" : "BOS",
style=label.style_label_down, color=color.new(color.white, 100),
textcolor=isChoch ? chochColor : bosColor, size=size.small)
trendDir := 1
if not na(lastBuyLvl) and ta.crossunder(close, lastBuyLvl)
isChoch = trendDir == 1
line.new(lastBuyBar, lastBuyLvl, bar_index, lastBuyLvl,
color=isChoch ? chochColor : bosColor, style=line.style_dashed)
label.new(int(math.round((lastBuyBar + bar_index) / 2)), lastBuyLvl, isChoch ?
"CHOCH" : "BOS",
style=label.style_label_up, color=color.new(color.white, 100),
textcolor=isChoch ? chochColor : bosColor, size=size.small)
trendDir := -1
// ============================== FAIR VALUE GAP
==============================
var box[] bullFvgBoxes = array.new_box()
var box[] bearFvgBoxes = array.new_box()
if showFVG
bullGap = low - high[2]
if bullGap > 0 and (bullGap / close) * 100 >= minFVGSizePct
b = box.new(bar_index[2], high[2], bar_index + fvgLookback, low,
border_color=color.new(color.green, 50), bgcolor=bullFvgColor,
extend=extend.none)
array.push(bullFvgBoxes, b)
bearGap = low[2] - high
if bearGap > 0 and (bearGap / close) * 100 >= minFVGSizePct
b2 = box.new(bar_index[2], low[2], bar_index + fvgLookback, high,
border_color=color.new(color.red, 50), bgcolor=bearFvgColor, extend=extend.none)
array.push(bearFvgBoxes, b2)
if showFVG and mitigateFVG
if array.size(bullFvgBoxes) > 0
for i = array.size(bullFvgBoxes) - 1 to 0
bx = array.get(bullFvgBoxes, i)
if close < box.get_bottom(bx)
box.delete(bx)
array.remove(bullFvgBoxes, i)
if array.size(bearFvgBoxes) > 0
for i = array.size(bearFvgBoxes) - 1 to 0
bx = array.get(bearFvgBoxes, i)
if close > box.get_top(bx)
box.delete(bx)
array.remove(bearFvgBoxes, i)
// ============================== ALERTS ==============================
alertcondition(showSweeps and array.size(sellLevels) > 0, "Sell-Side Zone Active", "Sell-side
liquidity zone active")
alertcondition(showSweeps and array.size(buyLevels) > 0, "Buy-Side Zone Active",
"Buy-side liquidity zone active")
